WESSEL PRESSURE RELIEF VALVES TYP PCV-CA
Description
The pressure reducing valves PCV-CA reduce a high inlet pressure to the desired outlet pressure. Thus a reduced pressure can be generated from the high pressure circuit in order to use valves that are not high pressure capable. The valves are available as a cartridge valve or together with the associated housing
Charateristics
- Adjustbable range 20-400 bar
- available as a cartridge and together with housings
- suitable for small installation space
Technical specifications

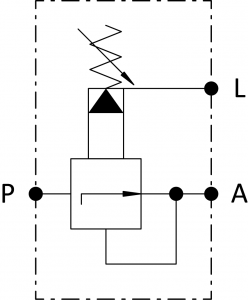

| Bauform | Ausführung | Symbol | P max, Q max | Einstellbereich | Datenblatt |
|---|---|---|---|---|---|
| PCV-CA | Manuell als Patrone |  | 400 bar, 40l/min | 20-400 bar |  |
| PCV-1F | Manuell im Gehäuse | | 400 bar, 40l/min | 20 -400 bar | |
| PCV-CA | Manuelle als Patrone | | 400 bar, 70l/min | 20- 400 bar | |
Applications
- Pressure reduction from a part or branch of the system
- Protection of non-high-pressure valves
