WESSEL Flow Control Valve FC1

3-Way Flow Control Valve for Motor- & Cylinder Operation

Product Description

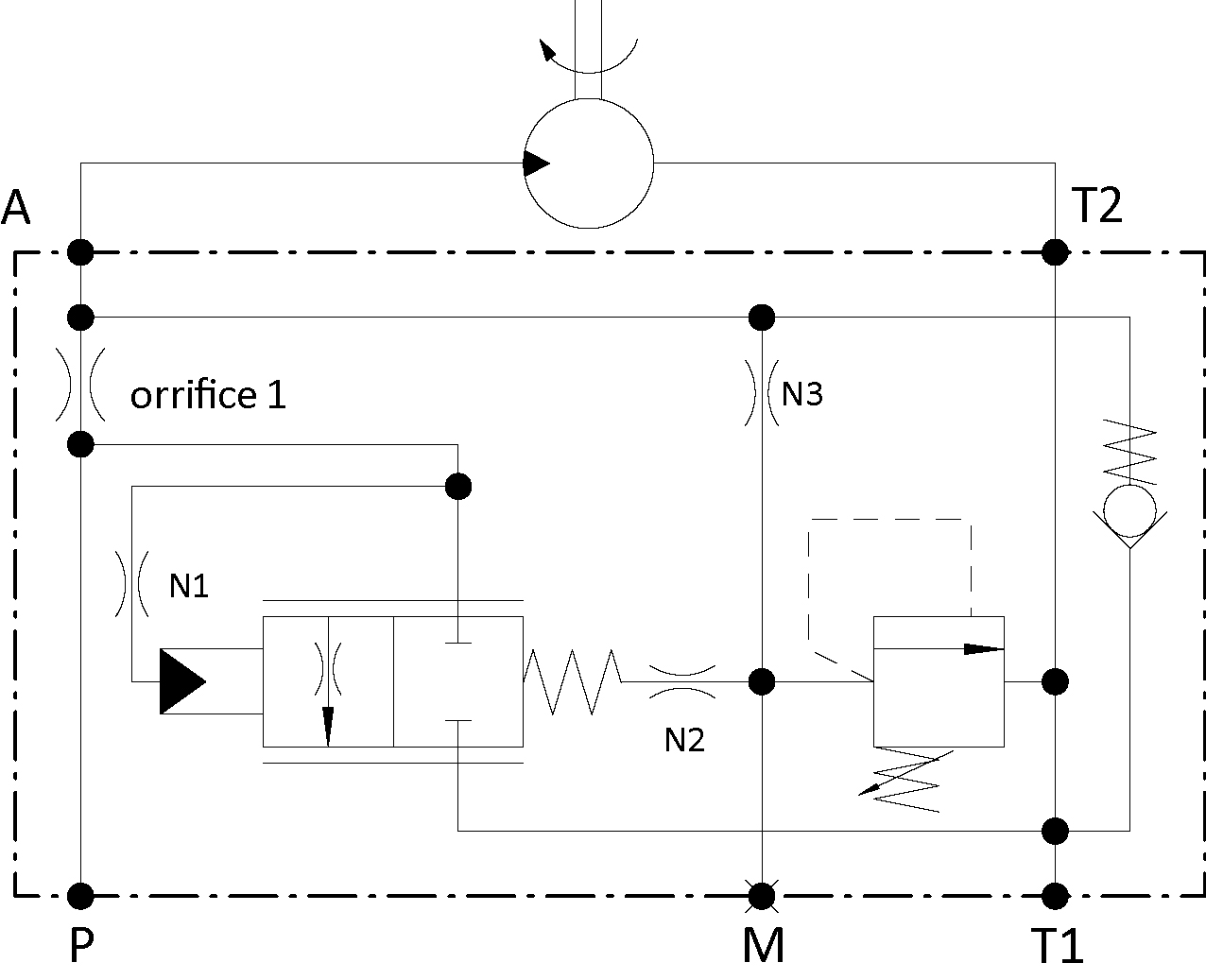

The flow control valve is based on the principle of a 3-way flow controller. The consumer is supplied with a certain volume flow and the remaining flow is fed to the tank. Possible applications are hydraulic motors or cylinders that are to be operated at a fixed speed regardless of the load. A pressure relief valve protects the consumer from excessive pressures. The valve is suitable for single-acting consumers.

Characteristics

  • suitable for fixed displacement pumps
  • Integrated 3-way pressure compensator
  • Preset of the volume flow according to user requirements (50-180 l / min)
  • Orifice for preset interchangeable

Technical specifications

DesignPort sizesMaximum pressureMaximum Input volume flowFlow rate range for the consumer
FC1G 3/4"420 bar320 l/min50 - 180 l/min
