WESSEL Way valve Typ D32-NA

Description

Directional Control Valves 3/2 are used to switch over a volume flow from one user to another user. These valves are designed as hydraulic operated, robust spool valves and can handle volume flows up to 300 l/min at a pressure up to 420 bar.

Characteristics

  • Robust design
  • Hydraulically pilot controlled
  • Low pressure loss
  • Maximum pressure 420 bar
  • Maximum volume flow up to 300 l/min

Technical specifications

DesignPort sizesMaximum pressureMaximum flow
D32-NAG 1"420 bar300 l/min

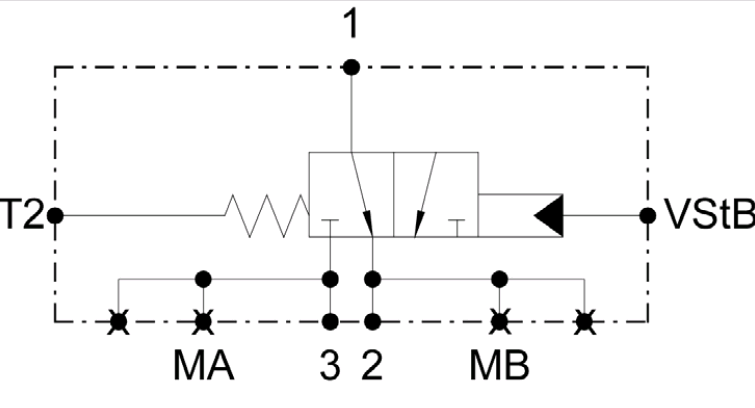

Hydraulic schematic

Anwendungen

  • Excavators
  • wheel loaders
  • Material handling Machines



Downloads

Datasheet D32-NA
