WESSEL PRESSURE RELIEF PRV

WESSEL pressure relief valves protect components such as consumers and lines from excessive pressures. The valves are offered in a housing, but also as cartridges, for which different housings are available. The valves cover volume flows up to 400 l / min. There are direct controlled and piloted variants available.

PRV1-DA

Applications:
Pilot Pressure relief valve

Design:
Cartridge
manual, electric and hydraulic

Qmax: 2 l/min | Pmax: 420 bar

Port sizes:
Stepped bore

PRV-DSU

Applications:
e.g. lifting cylinders in truck cranes

Design:
Cartridge
directly controlled, manually adjustable

Qmax: 10 l/min | Pmax: 500 bar

Port sizes:
stepped bore

PRV-DBU

Applications:
Pressure protection in closed systems

Design:
Cartridge


Qmax: 200 l/min | Pmax: 500 bar

Port-sizes:
stepped bore G1/2 "



PRV-1PI

Applications:
Pressure protection of any consumer

Design:
Cartridge and body

Qmax:400l/min | Pmax: 400bar

Port sizes:
G3/4"

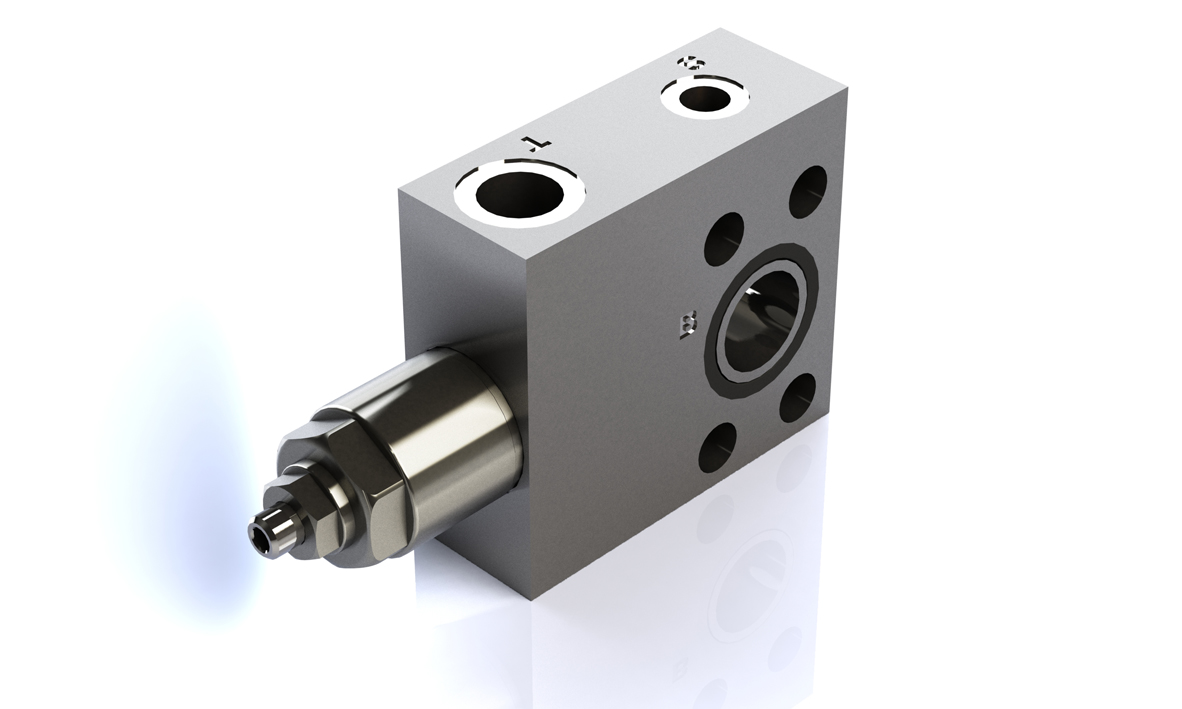

PRV-1DI

Applications:
Pressure protection of any consumer

Design:
in housing

Qmax: 150 l/min | Pmax: 420 bar

Port sizes:
G 3/4"
