WESSEL Flow Divider 4-6 fold FDV-X
Product Description

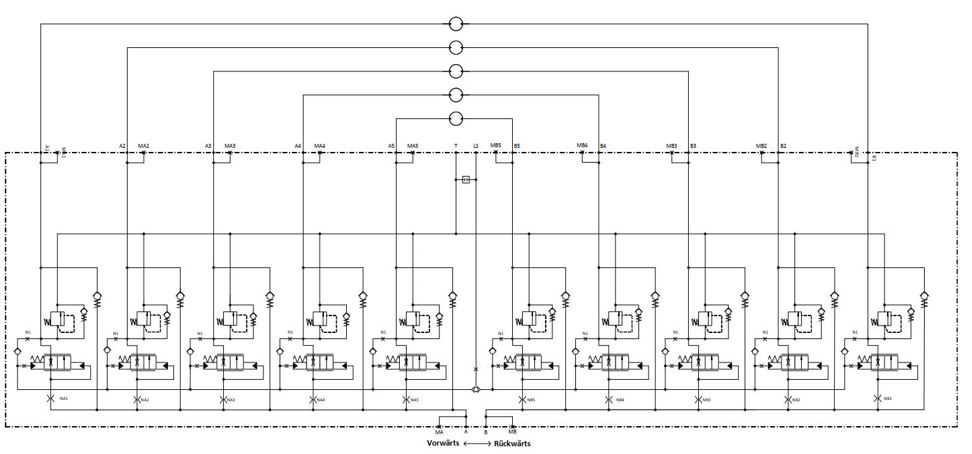

The flow divider ensures load flow independent flow volume distribution for up to 6 consumers. The valve consists of an input section for the
pump connections A and B. One consumer can be controlled in both directions per section, making the flow divi-der type FDV-1X suitable for
double-acting consumers, e.g. Hydromotors on travel drives (forward backward). The load pressure independent volume flow distribution is
realized by pressure compensators and fixed orifices. Different division ratios can be realized by adapting the fixed orifices. The valve works
according to the LUDV principle, which enables simple adjustment of the division ratios and simple adjustment of the division accuracy.
Characteristics
- Modular structure for up to 6 consumers
- Application for consumers with high demands on the accuracy of the volume flow
- Maximum input volume flow 330l / min
- Integrated pressure relief valve with suction function
Technische Daten
| Design | Port sizes | Maximum operating pressure | Maximum volume flow |
|---|---|---|---|
| FDV-1X | A,B SAE = 1" A(x), B(x) = G1/2" | 420 bar | Q on 360 l/min Q off 60 l/min |
Anwendungen
- Hydrostatic drives
- Agricultural machinery
- ...
